Welded Gabion Baskets



Welded Gabion Baskets

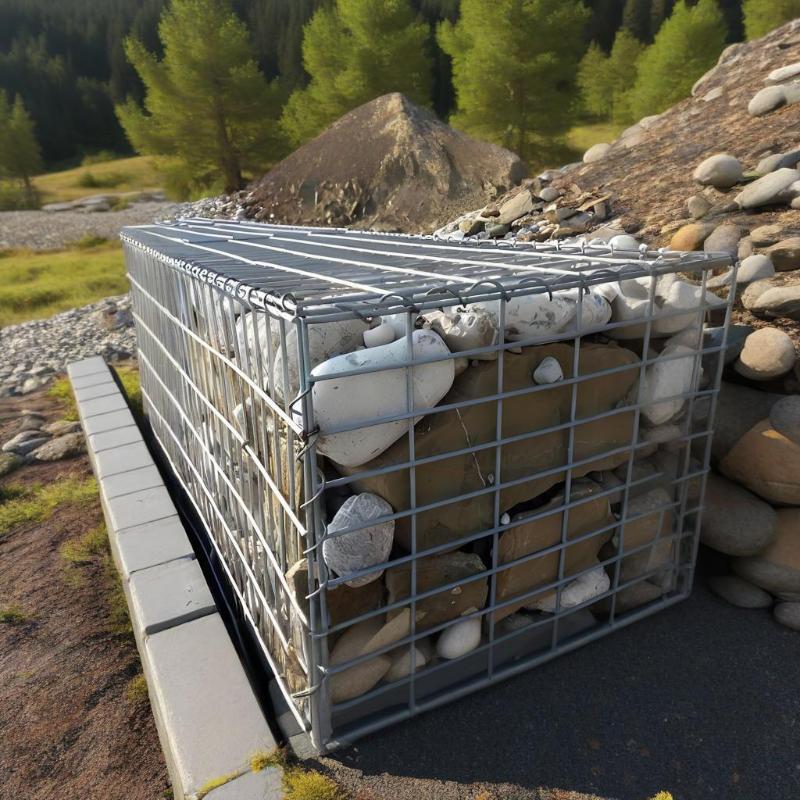

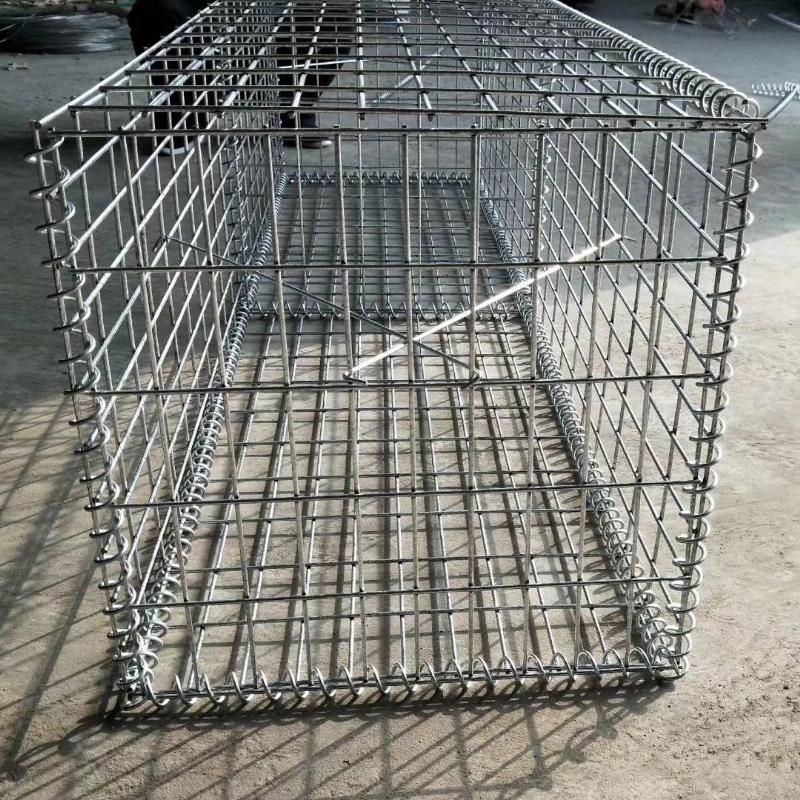

A welded gabion basket arrives flat, opens into a box in seconds, and locks its edges with steel spirals - no tools, no lacing wire, no training. The panels are machine-welded from straight steel wire, which is the whole difference from a woven basket: the mesh is square or rectangular, the cage is rigid, and the face you fill with stone stays a plane. For every job where the wall is meant to look built rather than piled, this is the product.

Rigid cages earn their keep on civil and landscaping work: boundary and noise walls along highways, flood channel lining where debris would batter a flexible cage, bridge and culvert headwalls, park steps and terraces, and architectural cladding. The honest limit: welded baskets want reasonably stable ground. A cage that cannot flex transfers settlement into its welds. On soft, settling or constantly wet foundations, woven baskets are the safer engineering choice - we manufacture both and will tell you which one your project actually needs.

Wholesale iron welded gabion stone cage rock gabion

It is made of high-quality low-carbon steel wire, which is processed and formed by automatic, precise and accurate mechanical equipment in strict accordance with the standard of BS1052:1986. And the surface is passivated and plasticized by processes such as electro-galvanizing, hot-dip galvanizing, dip-plastic coating or Galfan(Zinc-aluminium coating).

Frequently Asked Questions

Welded or woven gabion baskets - which should I buy?

Location decides it. In water and on ground that moves - riverbeds, channel floors, settling embankments - woven double-twist baskets flex and stay intact. On stable ground in air - walls, headwalls, terraces, anything with a visible face - welded baskets are faster to build and hold a true plane. Many projects use both; the two types are not competitors, they are different tools.

How does assembly actually work on site?

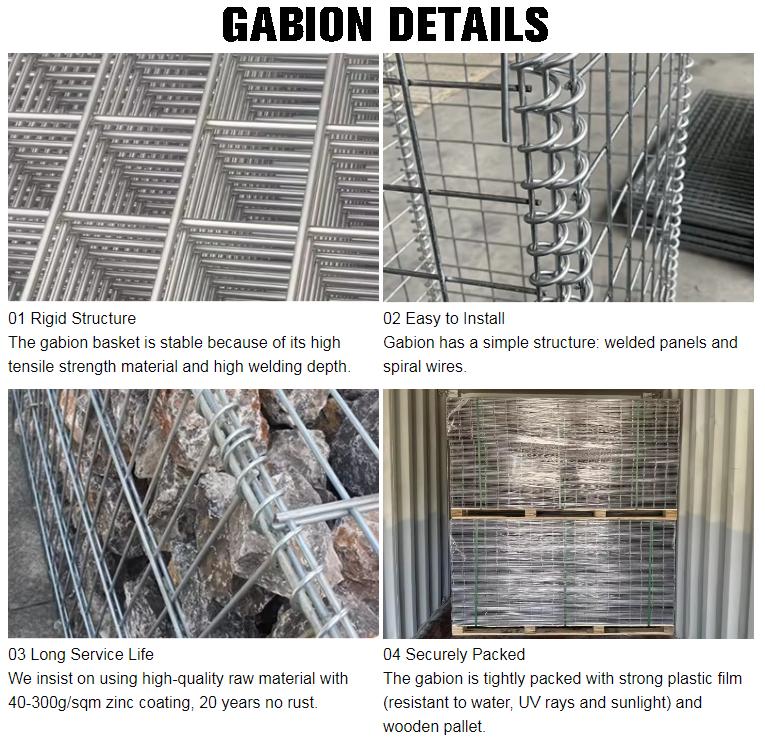

Unfold the cage, close it into a box, screw the supplied spirals through the vertical edges, drop in the stiffener rods, and it is ready for stone. Two workers set up a cage in a few minutes. Baskets are placed, joined to their neighbours, then filled together so the row stays aligned.

Will the welds break if the wall settles?

Small movement, no - the wire itself has some give and 4.0 mm welds are strong. Real differential settlement, yes, and this is the one failure mode that matters: a cracked weld line in a wall face. Prevention is not more welding, it is the right foundation: level the base, compact it, and use woven baskets where soil is still moving.

Which coating do I need?

Hot-dip galvanized handles most dry-land walls for decades. Galfan is the upgrade where humidity or road salt is constant. PVC dip is for walls people touch and sites near the sea, and it lets you match wall mesh to surroundings in black, gray or green. Temporary works can run electro-galvanized and save cost.

How fast can you supply, and how is the order priced?

Standard sizes ship in 15–25 days; welded cages pack flat so container counts are high and freight per cage is low. Send the wall length and height - a sketch is enough - and we return a cage schedule, container plan and quote within 24 hours.
