Product Overview & Manufacturing Excellence

As a leading industrial manufacturer, we engineer High-Strength Welded Gabion Mesh designed for critical infrastructure, large-scale retaining walls, civil engineering, and modern architectural landscaping.

Unlike traditional woven gabion mesh, our welded gabion wire mesh is manufactured from premium low carbon steel wire using advanced automated resistance welding. Each intersection point is precisely welded, resulting in superior structural rigidity, exceptional shape retention under stone pressure, and a clean, modern aesthetic.

Whether you are supplying a government flood control project or sourcing for commercial landscape architecture, our welded gabion systems deliver unmatched durability, rapid on-site installation, and long-term cost efficiency. All products are manufactured in compliance with international quality benchmarks such as ASTM A974 and EN 10223-8 for welded gabion structures.

Gabion Wire Mesh Panels
Welded Gabion is made of Welded Wire Mesh panels assembled with spirals and stiffener.. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.
Hesco Barrier Retaining Wall | Erosion Control & Slope St...
High-strength Hesco barrier retaining wall for slope stabilization, riverbank erosion control and earth retention. Galvanized welded mesh structure, fast installation, 50-year service life, factory
Galvanized Steel Hesco Barrier | Hot-Dip Galvanized Corro...
Premium galvanized steel Hesco barrier with hot-dip zinc coating (240–300g/m²) for maximum corrosion resistance. Military, flood & industrial use. Factory direct from China manufacturer.
Flood Control Hesco Barrier – Rapid-Deploy Sand-Filled Fl...
Fast-deploy flood control Hesco barrier for emergency levees, riverbank protection & water diversion. Galvanized welded mesh, geotextile lined. Factory direct, global shipping.
Military Hesco Barrier – Heavy-Duty Blast & Ballistic Pro...
Heavy-duty military Hesco barrier for perimeter defense, bunkers & camp security. Hot-dip galvanized welded mesh + geotextile liner. MIL1–MIL10 sizes, factory direct price.
Heavy Duty Galvanized Welded Hesco Barrier For Military P...
Our heavy duty galvanized welded Hesco barriers are engineered specifically for military perimeter defense, tactical bunkers, and camp security. Constructed with high-tensile hot-dipped galvanized
Fine Mesh Metals Gabions
Welded gabion is an engineering component made of high-strength metal wire (such as galvanized steel wire, stainless steel wire, etc.) through welding process to form a mesh structure, and then
Welded Gabion Baskets
Plastic coated wire ,galvanized wire stone cage wire mesh,is not only used as the stone net cage, but also as the high quality construction materials. widely used in highways, railways, greening
Galvanized Welded Gabion Cage
Gabion is very popular in construction with its stable structure, high flexibility and corrosion resistance. We can supply two kinds of gabion: welded gabion and woven gabion.. Welded gabion baskets
Galvanized Welded Gabion Cages
Welded Gabion Box (baskets) are made of welded wire fabrics. Welded gabion baskets can be connected with other similar containers and filled with stone to form flexible and permeable structures for
Stepped Gabion Retaining Wall
WELDED GABION BOX are wire container made of welded wire mesh panel.Welded gabion basket is widely used abroad, mainly used for park landscape modeling, building exterior wall,welded gabion has
Reinforced Gabion Retaining Wall
Welded gabion cages can control soil erosion well and provide a neat and very aesthetically pleasing appearance. Therefore,welded gabion mesh has been widely used in road protection and landscape

First 12 Last

Key Engineering Advantages

Superior Structural Rigidity & Load-Bearing Capacity
Precision Welding: Steel wires are electrically welded at every intersection, creating a rigid mesh framework that prevents bulging or deformation when filled with rocks.
Dimensional Stability: Maintains flat, sharp lines, making it ideal for engineered retaining walls and high-load civil applications.

Advanced Anti-Corrosion Surface Treatments
Engineered for decades of outdoor service in aggressive environments, our gabion panels undergo rigorous anti-corrosion processing:
Hot Dip Galvanized (HDG): Thick zinc layer providing robust baseline rust protection, meeting standard coating weights ranging from 240g/m2 to 300g/m2 for standard infrastructure.
Galfan (Zinc-Aluminum Alloy): Composed of 95% Zinc and 5% Aluminum Alloy, offering up to 3x the corrosion resistance of standard galvanization, perfect for coastal zones, high-moisture riverbanks, and harsh climates.
PVC Coated: Combines metallic strength with a polymer barrier, offering enhanced chemical/moisture resistance and aesthetic color blending (Green, Gray, Black).

Cost-Effective, Fast-Track Installation
Prefabricated panels minimize labor hours and specialized heavy machinery requirements on-site.
Quick assembly using spiral binders, C-rings, or high-strength clips, drastically lowering total project installation costs.

Technical Specifications

Technical Parameter	Specification Range
Material	Premium Low Carbon Steel Wire (Q195 / Q235)
Wire Diameter	3.0mm to 6.0mm (Customizable)
Mesh Openings	50×50mm, 50×100mm, 75×75mm, 100×100mm
Mesh Pattern	Square or Rectangular
Surface Treatment	Hot Dip Galvanized / Galfan (Zn-Al) / PVC Coated
Assembly System	Spiral Wires, C-Clips, Fastening Helixes
Primary Applications	Retaining Walls, Erosion Control, Riverbanks, Landscaping
OEM / ODM Services	Full Customization Available (Sizes, Coatings, Packing)

Product Variants for Specific Project Demands

Galvanized Welded Gabions

The industry standard for highways, general slope protection, and railway stabilization.

Galfan Coated Welded Gabions

The preferred choice for marine environments, water channels, and projects requiring a 50+ year design life.

PVC Coated Welded Gabions

Designed for urban architecture, garden feature walls, and scenic areas where environmental harmony and visual appeal are critical.

Proven Applications in Global Infrastructure

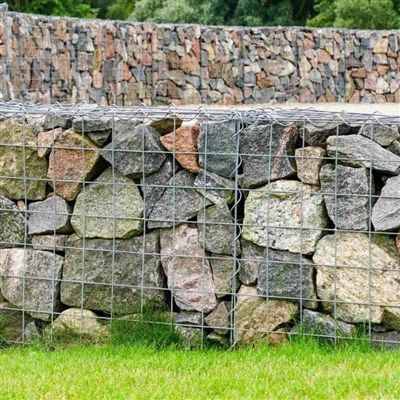

Retaining Wall Systems

Reliable soil retention preventing landslides and ground shifting.

River & Canal Protection

Embankment reinforcement, dam protection, and shoreline stabilization against high-velocity water flows.

Highway & Railway Slopes

Deep reinforcement for cut-and-fill slopes in challenging terrain.

Flood Control Barriers

Rapid deployment units for emergency flood prevention and water conservation channels.

Architectural Landscaping

Modern garden partitions, decorative feature walls, and outdoor furniture frameworks.

Certified Manufacturing & Quality Control Process

To guarantee compliance with international engineering standards, our production undergoes a strict 6-Stage Quality Assurance Protocol:

Raw Material Audit

Sourcing only high-tensile, low-carbon steel wire.

Precision Straightening & Cutting

Automated processing to ensure exact panel dimensions.

Automated Resistance Welding

Computer-controlled welding for uniform mesh spacing and high joint shear strength.

Advanced Coating Application

Controlled hot-dip galvanizing, Galfan deposition, or eco-friendly PVC bonding.

Rigorous Quality Testing

Batch testing for wire gauge, tensile strength, weld integrity, and coating thickness.

Secure Export Packaging

Flat-packed panels bundled securely with protective edges and tied in bundle pallets to maximize 20ft/40ft container loading capacity, reduce shipping freight costs, and prevent transit damage.

FAQ

Q: What are the minimum order quantities and lead times for bulk orders?

A: As a direct manufacturer, we support flexible order quantities depending on the specification. Standard container loads typically ship within 15 to 25 days. Contact our export team for precise schedules tailored to your project.

Q: How does welded gabion mesh compare to traditional woven mesh?

A: Welded mesh provides a rigid structure, superior aesthetic flatness, and faster assembly, making it ideal for engineered walls and visible landscaping. Woven mesh offers flexibility, which is sometimes preferred in areas prone to severe differential ground settlement.

Q: Can you supply complete installation kits (spacers, spirals, bracing)?

A: Yes. We provide a complete solution including all necessary assembly accessories such as spiral binders, corner stiffeners, and C-ring fasteners packaged neatly with your mesh panels.

Q: Do you support independent third-party inspection prior to shipment?

A: Absolutely. We regularly cooperate with independent inspection agencies appointed by global project managers, contractors, and procurement officers to ensure complete transparency and trust.

As one of the most experienced welded gabion mesh manufacturers and suppliers in China, we offer a wide range of products with superior quality. Please feel free to buy durable welded gabion mesh at competitive price from our factory. Welcome to view our website for more information.
