Gabion box

Gabion box

The double twisted gabion wire mesh made by twisting continuous pairs of wires through three one-half turns (commonly called double twisted )to form hexagonal-shaped opening which are then interconnected to adjacent wire to hexagonal openings.
Send Inquiry
Description
Technical Parameters

Technical Specifications

Complete, comparable data - so you can calculate landed cost before you even email us.

Construction Gabion Basket - Woven, Double-Twisted
Weaving Double-twisted hexagonal woven mesh, woven from one continuous panel (no welds)
Mesh opening (D) 60×80 mm (nominal 64 mm, tol. ±10%) · 80×100 mm (83 mm, ±10%) · 100×120 mm · 120×150 mm
Wire diameter - mesh 2.0 / 2.2 / 2.5 / 2.7 / 3.0 mm
Wire diameter - selvedge (edge) One size heavier than mesh wire, typically 3.0 – 4.0 mm
Wire diameter - tie/lacing wire 2.2 mm, supplied with each basket
Tensile strength 350 – 500 N/mm² (low-carbon steel wire)
Zinc coating Hot-dip galvanized ≥230 g/m² (Class A) or Galfan (Zn-5%Al, ~≥245 g/m²) per EN 10244-2
PVC coating option 0.5 mm nominal grey/green PVC over galvanized wire - for marine or acidic environments
Standard box sizes (m) 1×1×1 · 2×1×1 · 3×1×1 · 4×1×1 · 2×1×0.5 · 3×1×0.5 · 4×1×0.3 (custom sizes & diaphragms on request)
Diaphragms Internal partition panels every 1 m, factory-attached
Standards EN 10223-3 / ASTM A975 ( gabion grade ) - certificate & mill test report per shipment
Packing Flat-packed, bundled on steel pallets; lacing wire & instructions included

Not sure which spec fits your project? Send the drawing - our engineers will match mesh & wire to your design loads within 24 hours.



11





Production Process



product-762-264

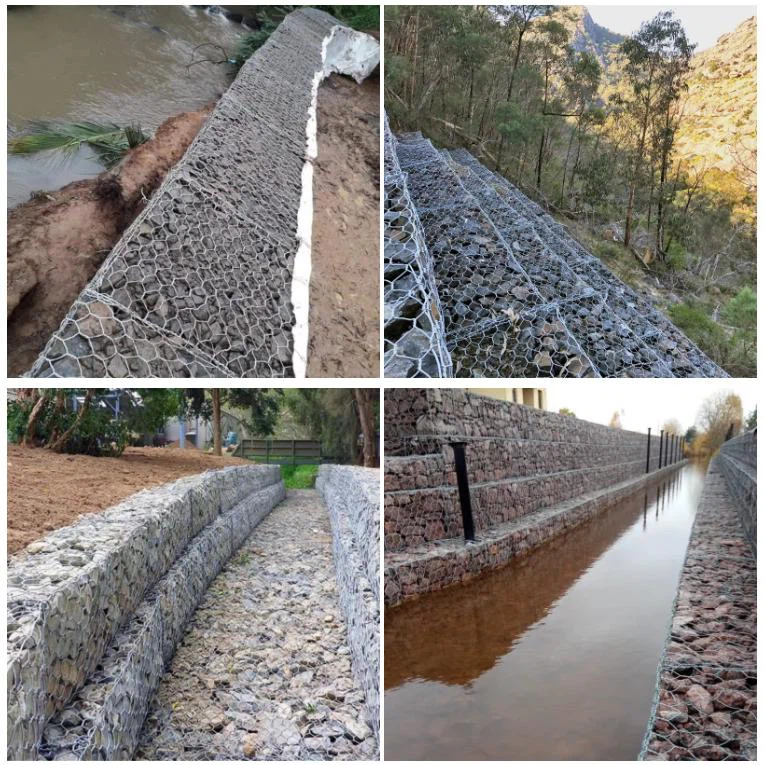

Product Application



product-764-765



Selection Guide - pick the basket for your job



Application Box size (L×W×H) Wire Coating
Riverbank & slope toe protection 2×1×0.5 m / 3×1×0.5 m 2.7 mm Hot-dip galvanized ≥230 g/m²
Standard retaining walls 2×1×1 m / 3×1×1 m 2.7 mm Galvanized or Galfan
Flood control & heavy civil 3×1×1 m / 4×1×1 m 3.0 mm Galfan (Zn-5%Al) for wet zones
Marine / acidic environment custom 2.7 mm PVC over galvanized



Ordering Information



Item Details
MOQ 1 × 20ft container
Lead time 10–15 days standard · 18–20 days coated
Packing Flat-packed with internal diaphragms every 1 m, lacing wire included
Standards EN 10223-3 / ASTM A975, certificate per shipment



1,Woven or welded - which basket for my retaining wall?



If the ground settles or scour runs deep, woven double-twist is the right call - one cut wire cannot unzip the panel. If the bank is stable and you want a crisp architectural face, welded cages hold flatter lines. We make both, so tell us the site and we will say which fits.



2,Can you match the basket to my engineering drawing?



Yes. Send the drawing with design loads and soil conditions, and our engineers will return a mesh, wire and coating specification you can drop straight into a tender - within 24 hours.
