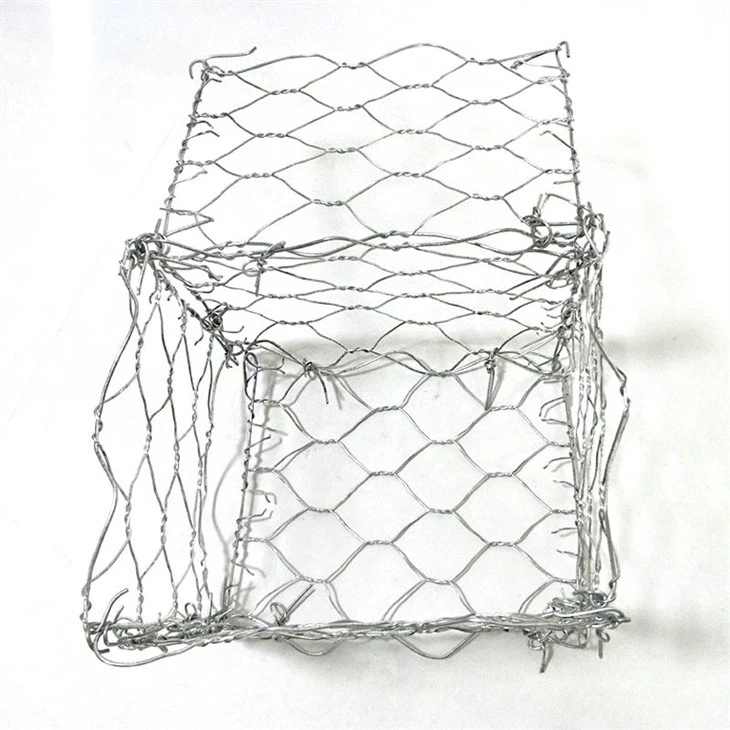

Hexagonal Wire Gabion Basket

A hexagonal wire gabion basket is the classic woven gabion: a double-twisted hexagonal wire mesh container, partitioned into internal cells, joined to neighboring units and filled with stone on site. The double-twist weave is what separates it from welded gabions - each pair of wires is twisted together at every intersection, so the mesh bends in any direction without losing strength, and a cut wire stops at the twist rather than unraveling the panel. The result is a flexible, permeable, monolithic structure that behaves as one body under load and keeps working where rigid structures crack.

Why the Double-Twist Weave Matters

In hydraulic and earth-retention work, the mesh will eventually get damaged - by debris impact, vandalism or abrasion. The question is what happens next:

Woven double twist - a cut wire is stopped by the neighboring twists; the hole stays local and the basket keeps its strength. Standard woven gabions (such as those made to EN 10223-3) rely on exactly this property

Welded mesh - a broken weld releases the wire along its whole length; repair means wiring the panel back together

Three-dimensional flexibility - the hexagonal weave lets the basket follow uneven ground and settle with the embankment, which is why woven gabions dominate river, marine and landslide work

Woven Hexagonal vs Welded: Which to Order

Property	Woven Hexagonal (this page)	Welded Gabion
Best use	Rivers, marine, erosion, landslide - hydraulic engineering	Architectural walls, landscaping, facades
Flexibility	High - settles with the ground	Rigid - holds precise shape
Damage behavior	Local hole, no unraveling	Released wire along weld line
Appearance	Industrial, woven texture	Clean grid, architectural look
Standard	EN 10223-3 woven gabion wire	Welded panel gabion systems

Both types are in our program: woven hexagonal baskets for hydraulic and earth works, welded gabion panels for architectural and landscape projects. Many sites combine them - woven baskets in the water line, welded boxes above for the finished look.

Customizable Size

product-456-413

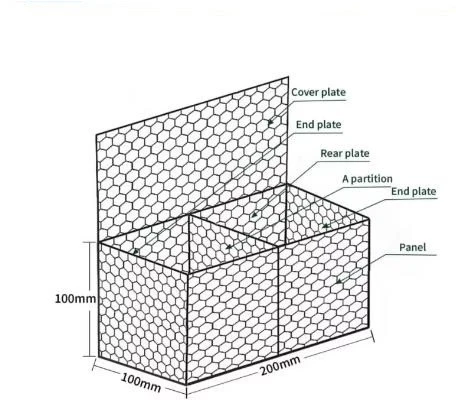

Gabion Baskets Sizes

Gabion basket sizes are mostly depends on the application requirements.

Following are few most required gabion basket sizes for reference. Get in touch with our specialists for more custom options and specifications.

Wire Specifications by Structure Type

Structure	Mesh	Mesh Wire	Selvedge Wire	Tie Wire
Gabion box (height ≥0.5m)	80×100 / 100×120mm	2.7mm, >260g/m² zinc	3.4mm, >275g/m²	2.2mm, >240g/m²
Reno mattress (0.17–0.23m)	60×80mm	2.2mm, >240g/m² zinc	2.7mm, >260g/m²	2.2mm, >240g/m²
Custom heavy duty	Per project	2.0–4.0mm	2.7–4.0mm	2.0–2.2mm

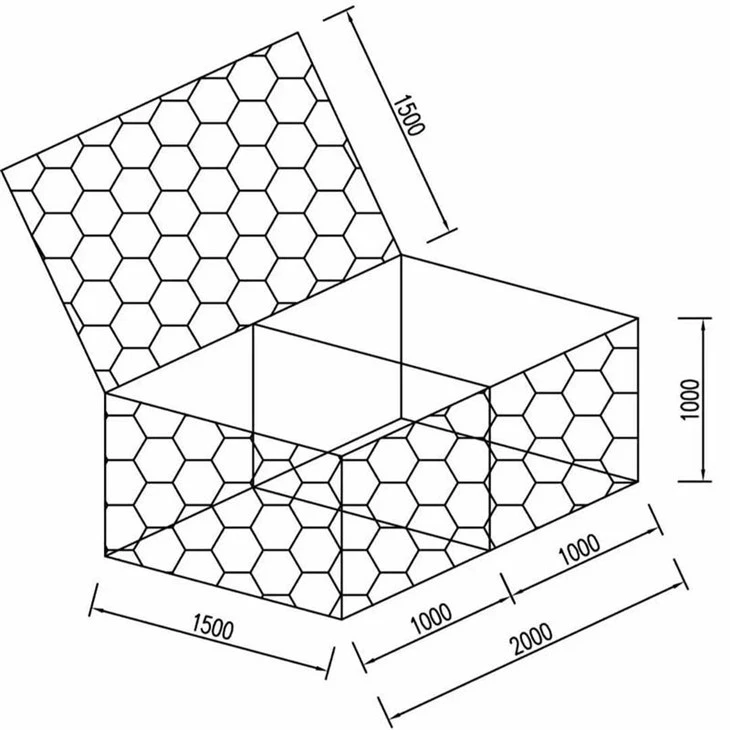

Note how the selvedge (edge) wire is always heavier than the mesh wire - the edge carries the lacing stress between baskets. Standard box sizes: 2×1×1m, 3×1×1m, 4×1×1m with internal diaphragms; Galfan and PVC-coated options available for marine and aggressive-soil sites.

Factory-Direct Woven Gabion Supply

Baskets ship flat-packed with lacing wire and diaphragms pre-attached, ready to assemble and fill. Tell us the application - river training, flood bank, bridge protection, seawall - and we will confirm mesh size, wire weight and coating for the site conditions, with a bill of materials and factory-direct quote within 24 hours.
